Steel Pipe Production Shear End Welder Automatic Butt Machine

Shijiazhuang Zhongtai Pipe Technology Development Co., Ltd
Contact Now

Steel Pipe Production Shear End Welder Automatic Butt Machine

Brand Name : ZTZG

Model Number : ZTZG - shear and welder

Certification : ISO9001

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets/year

Delivery Time : 120 days

Packaging Details : All mechanical equipment is nude packing and electrical parts are packed in wooden cases

Name : Steel Pipe Production Automatic Shearing And Butt End Welding Machine

After Warranty : Video technical support, Online support, Field maintenance an

Core Components : PLC, Engine, Bearing, Gearbox, Motor

Dimensions : 3X4X2M

Usage : shear and butt steel trip

After-sales Service : Field installation, commissioning and training, Field mainte

Key Selling Points : High Safety Level

Weight (KG) : 10000 KG

Color : Customer's Requirement

Brand : ZTZG

Contact Now

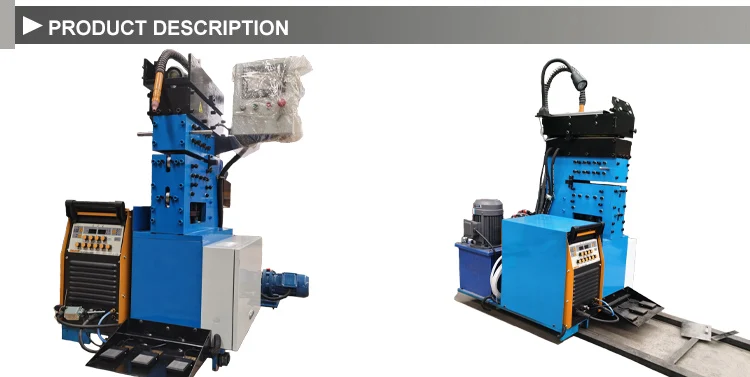

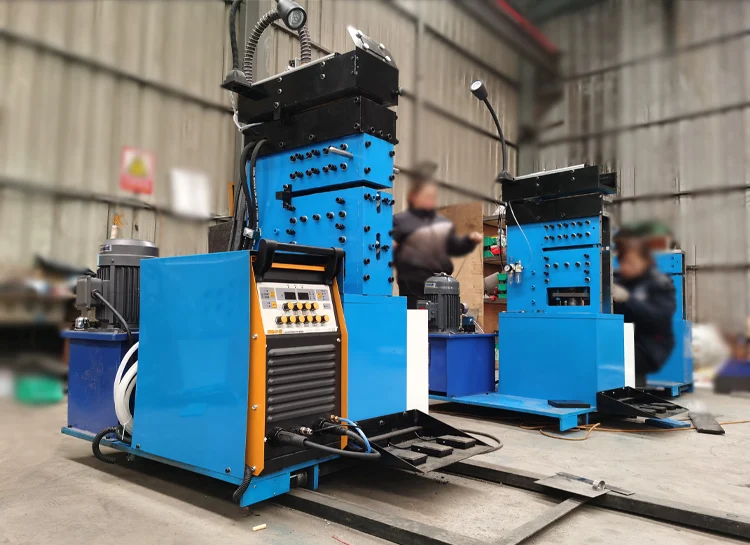

Steel Pipe Production Automatic Shearing And Butt End Welding Machine
To connect the strips after cutting the preceding coil tail end and the succeeding coil top end and being welded together by CO2 gas shielding welding to keep the Pipe Welding Line running continuously.
Name Steel Pipe Production Automatic Shearing And Butt End Welding Machine
After Warranty Video technical support, Online support, Field maintenance an
Core Components PLC, Engine, Bearing, Gearbox, Motor
Dimensions 3X4X2M
Usage shear and butt steel trip
After-sales Service Field installation, commissioning and training, Field mainte
Key Selling Points High Safety Level
Weight (KG) 10000 KG
Color Customer's Requirement
Brand ZTZG
Steel Pipe Production Shear End Welder Automatic Butt Machine
Hydraulic
210
250
300
350
Effective welding length
210mm
250mm
300mm
350mm

Effective shear lengthe
200mm
250mm
300mm
350mm
Strip Thickness
0.8~2.5mm
0.8~5mm
0.8~5mm
0.8~5mm
Welding Speed
500-1500nm/min
500-1500nm/min
500-1500nm/min
500-1500nm/min
Walking Speed
0.10mm
0.10mm
0.10mm
15~200A
Shear pressure
0. 4Mpa
10Mpa
10Mpa
10Mpa
Dimensionse
700*700*1200mm
1050*750*1400mm
1150*800*1400mm
1200*900*1400mm
Installed power
18.5Kw
18.5Kw
18.5Kw
18.5Kw
Equipment weight
400kg
600kg
700kg
900kg
Steel Pipe Production Shear End Welder Automatic Butt Machine
Steel Pipe Production Shear End Welder Automatic Butt Machine
Steel Pipe Production Shear End Welder Automatic Butt MachineSteel Pipe Production Shear End Welder Automatic Butt MachineSteel Pipe Production Shear End Welder Automatic Butt MachineSteel Pipe Production Shear End Welder Automatic Butt MachineSteel Pipe Production Shear End Welder Automatic Butt Machine
Steel Pipe Production Shear End Welder Automatic Butt Machine
Steel Pipe Production Shear End Welder Automatic Butt Machine
Steel Pipe Production Shear End Welder Automatic Butt Machine
Steel Pipe Production Shear End Welder Automatic Butt Machine
Steel Pipe Production Shear End Welder Automatic Butt Machine
Steel Pipe Production Shear End Welder Automatic Butt Machine
Steel Pipe Production Shear End Welder Automatic Butt Machine
Steel Pipe Production Shear End Welder Automatic Butt Machine
Steel Pipe Production Shear End Welder Automatic Butt Machine
Steel Pipe Production Shear End Welder Automatic Butt Machine

Q:Are you manufacturer?
A:Yes,we are manufacturer. We have 4 factories ( Machining, Assembling, Heat treatment, and Moulding ). We also

have our own R&D department. Welcome to visit us.
Q:What kind of payment term do you do?
A: We do T/T and L/C.
Q:What info do you need before giving me the price and proposal?
A: Since we design individual machine based on our customer's requirement, we need your desired products' basic

dimension, including all the pipe diameter(or tube length), thickness range , usage, raw material steel grade, coil

weight, and degree of automation.
Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant for pre-sales service .Also we can help you solve the raw material

(steel coil) purchase, worker training, international market price, and more.
Q:How do you do QA?
A:We have special team to do strict QA,this is one of our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.

(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure its in the range of tolerance critical parts will be inspected for all dimensions.
Q:Why I should choose you? what are the differences between you and other Chinese suppliers?
A:We are concentrate on pipe making machines for more than 20 years. We have constructed many steady trading partners

in Asia,Africa, middle east, Europe, and South America throughout the years. Our innovative designed production line and

each single unit of the production line are not only economical but also practical.
