Steel Automatic Level 3 In 1 Uncoiler Machine Cum Servo Roll Feeder

Product Categories

ERW Tube Mill [150]
API Tube Mill [106]
Square Tube Mill [82]
Stainless Steel Tube Mill [90]
Cold Rolled Steel Machine [88]
Steel Pipe Production Line [96]
Steel Coil Slitting Machine [66]
Forming Roller [42]
Solid State High Frequency Welder [44]
Flying Cut Off Saw [44]
Accumulator Machine [38]
Shear End Welder [40]
Uncoiler Machine [42]
Pipe Packing Machine [34]
Hydrostatic Test Machine [36]

Shijiazhuang Zhongtai Pipe Technology Development Co., Ltd

Contact Now

Steel Automatic Level 3 In 1 Uncoiler Machine Cum Servo Roll Feeder

Name: Steel Automatic Level 3 In 1 Uncoiler Machine Cum Servo Roll Feeder
Brand: ZTZG
Price: 1 USD

Quality Steel Automatic Level 3 In 1 Uncoiler Machine Cum Servo Roll Feeder for sale

Brand Name : ZTZG

Model Number : ZTZG - shear and welder

Certification : ISO9001

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets/year

Delivery Time : 120 days

Packaging Details : All mechanical equipment is nude packing and electrical parts are packed in wooden cases

Name : 3i N 1 Steel Uncoiler Automatic Level Machine Cum Servo Roll Feeder Machine

After Warranty : Video technical support, Online support, Field maintenance an

Core Components : PLC, Engine, Bearing, Gearbox, Motor

Dimensions : depends on machine type

Usage : shear and butt steel trip

After-sales Service : Field installation, commissioning and training, Field mainte

Key Selling Points : High Safety Level

Weight (KG) : 10000 KG

Color : Customer's Requirement

Brand : ZTZG

Contact Now

3i N 1 Steel Uncoiler Automatic Level Machine Cum Servo Roll Feeder Machine

Name	3i N 1 Steel Uncoiler Automatic Level Machine Cum Servo Roll Feeder Machine
After Warranty	Video technical support, Online support, Field maintenance an
Core Components	PLC, Engine, Bearing, Gearbox, Motor
Dimensions	depends on machine type
Usage	shear and butt steel trip
After-sales Service	Field installation, commissioning and training, Field mainte
Key Selling Points	High Safety Level
Weight (KG)	10000 KG
Color	Customer's Requirement
Brand	ZTZG

Product Description
The uncoiler can be divided into several types and three level of automation. For smaller steel coil lower than 5 tons,

we normally use double arm uncoiler, and for steel coils between 5-8 tons, we usually use single arm uncoiler. For

steel coil very large, we use double corn uncoilers. You also can choose the automatic level of the uncoilers. The

highest level is full automatic uncoiler, which is fully driven by motor, the only thing you need to do is to press the

button on the remote-control. The second level of automation is pneumatic or hydraulic driven uncoilers. This type

of uncoiler requires people to turn them into places but you don't need to clamp the coils manually. They will clamp

the coils by pneumatic or hydraulic driven expanders. The lowest level of automation is mechanical uncoiler, it requires

manual operation in every sections. The mechanical uncoiler is usually used for small coils which can operate easily by

hand.

Uncoiler Types for Your Choice
Type	Arm Expanding Type	Horizontal Rotation Type	Pressing Head
Mechanical double/single arm uncoiler	Manual	Manual	Equipped when thickness is over 4.0mm
Hydraulic double/single arm uncoiler	Hydraulic	Manual	Equipped when thickness is over 4.0mm
Full automation double/single arm uncoiler	Automatic	Motor drive	Equipped when thickness is over 4.0mm
Single cone uncoiler	Automatic	Don't need to rotate	Equipped when thickness is over 4.0mm

Steel Automatic Level 3 In 1 Uncoiler Machine Cum Servo Roll Feeder

Basic Technical Information:
Inner diameter of the strip steel:Φ 470-530mm Outer diameter of the strip steel:Φ max=1800mm Strip steel width:

100mm-2000mm Strip steel thickness: 1.0mm-22.0mm The maximum weight of the strip steel: 2-15 tons

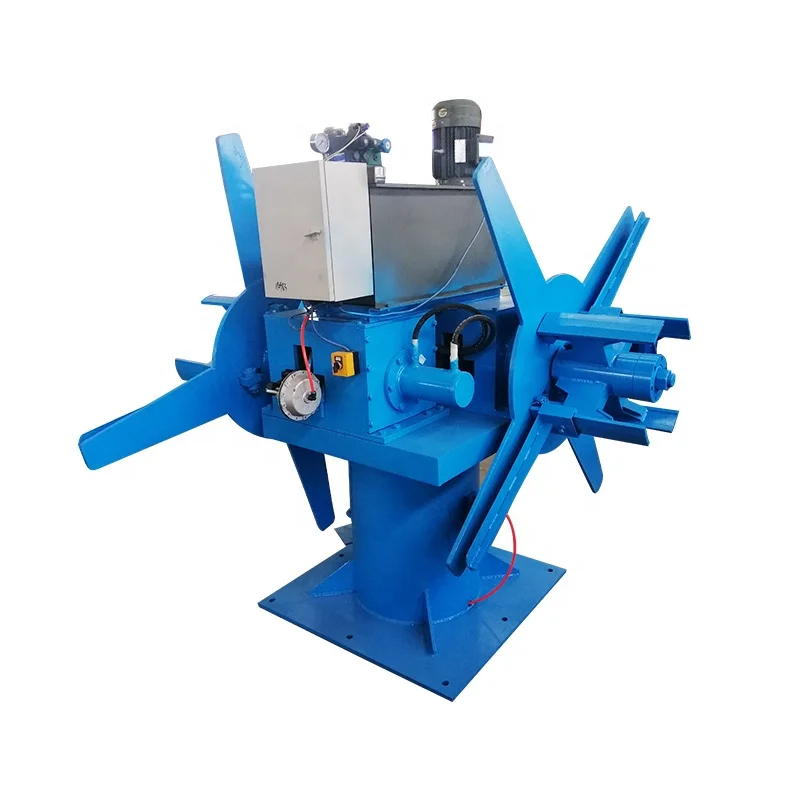

Automatic Double Arm Uncoiler

Full automatic uncoiler, which is fully driven by motor, the only thing you need to do is to press the button on the
remote-control

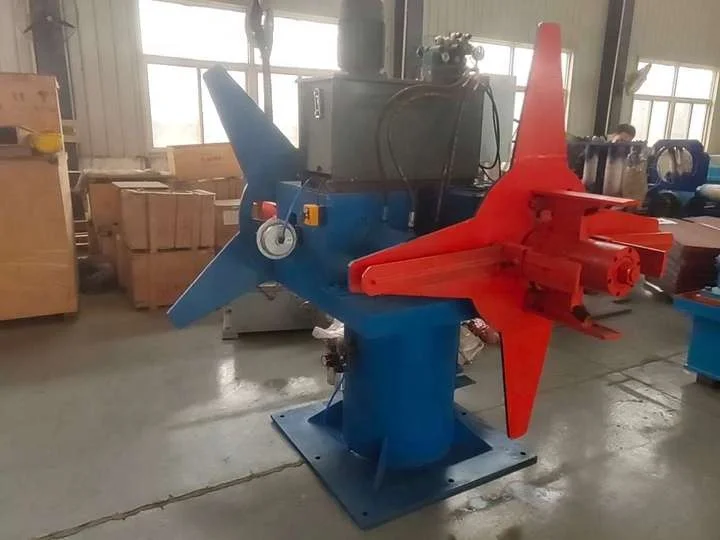

Pneumatic or Hydraulic Driven Uncoiler

This type of uncoiler requires people to turn them into places but you don't need to
clamp the coils manually. They will clamp the coils by pneumatic or hydraulic driven expanders.

Mechanical Uncoiler

It requires manual operation in every sections. The mechanical uncoiler is usually used for small coils which
can operate easily by hand.

Single Arm Uncoiler

For steel coils between 5-8 tons, we usually use single arm uncoiler. It usually go with a straightener of the coil ends.

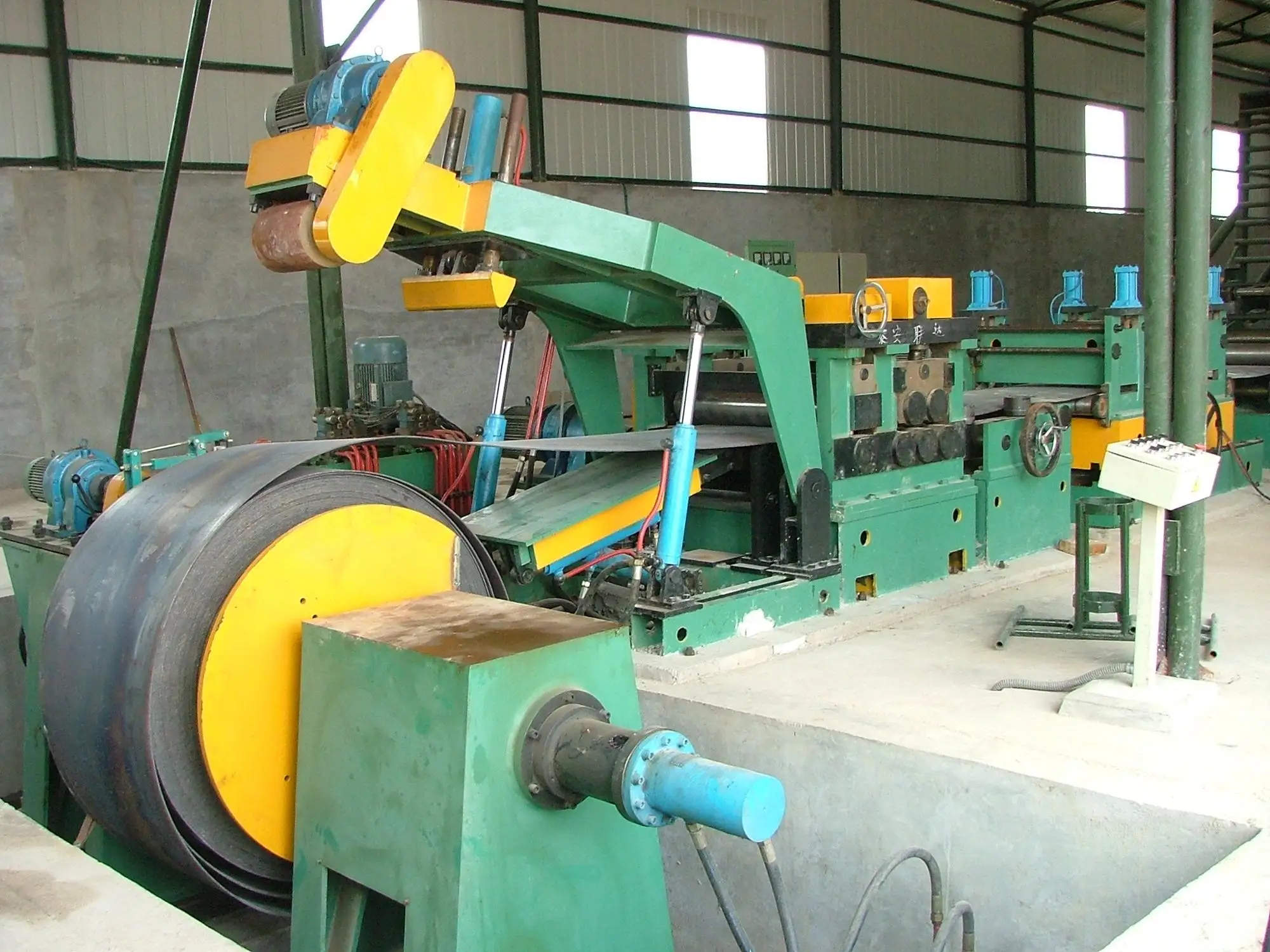

Double Corn Uncoilers

For steel coil very large, we use double corn uncoilers. To support a very heavy steel coil, there requires to be a

supporting corn on both sides of the steel coil. And this kind uncoiler are usually equipped with end straightener and

a peeler to cut the tieing strip off.

Q:Are you manufacturer?
A:Yes,we are manufacturer. We have 4 factories ( machining, assembling, heat treatment,and mould factory)And

we have our own R&D department. Welcome to visit us.
Q:What kind o f payment term you can do?
A: We can accept T/T and L/C.
Q:What info you need before you make the proposal?
A:The pipe diameter , thickness range , usage, raw material steel grade, coil weight and automatic degree.
Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant for pre-sales service .Also we can help you to solve the raw

material (steel coil) purchase,worker training,international market price.
Q:How do you do QA?
A:We have special team to do strict QA,this is one of our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.

(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure its in the range of tolerance critical parts will be inspected for all dimensions.
Q:Why I should choose you,what are the differences between you and other Chinese suppliers?
A:We are concentrate on this industry for more than 20 years,and especially in pipe making machines. Our pipe making

machine line directly export to Russia,Vietnam,lndia,Indonesia,and many other countries in Asia, Africa, middle east and

South America.
